2005 and 2006 Pilot interior differences

1507 Views 31 Replies 5 Participants Last post by  plplplpl,
H
4
Hey guys, so I am trying to plan out a way to get a Carplay head unit into my '05 Pilot. The issue is that my Pilot has the navigation unit on the top of the dash, and the FM radio on the bottom half where other '05s just have some CD storage. (image below of everything I'm talking about.) I saw a youtube video where someone got past this problem by putting the head unit into the top, but then using a 2006-2008 Metra kit to mask that bottom half into a storage space. I was wondering if anyone had an idea on if there is a significant difference in the sizing of the radios between the '06 and '05 Pilot. I don't see why it shouldn't work as the components look to be very similar. (I am not concerned about the NAV unit sizing because I have a different part to cover that, more concerned about the bottom. Will this kit fit into my '05?

Attachments

See less See more
Reply
Save
Like
21 - 32 of 32 Posts
WiiMaster
@plplplpl IIRC you have the GTA Car Kit installed as well? I'll be curious to see how it meshes with that.

I've thought about getting a GTA Car Kit module for my Odyssey but wasn't sure about making it work with the cassette player also in there. I emailed the folks, and they basically told me it was a 50/50 chance of it working...not the most helpful.
Reply
Save
Like
  • Like
Reactions: 2
WiiMaster

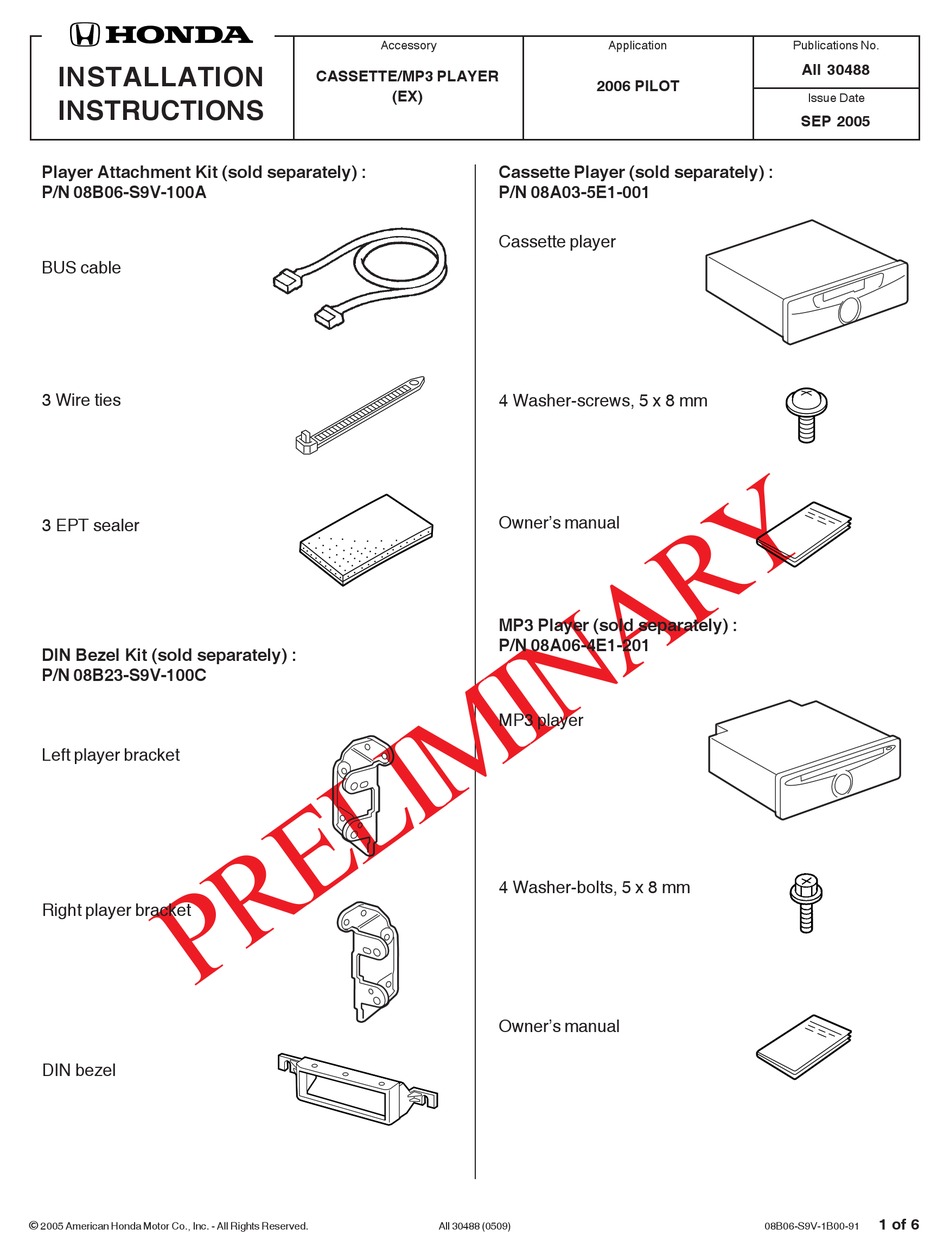

Also, I found this interesting manual that appears to be from Honda. It shows the cassette player installation instructions for the 06 Pilot EX:
www.manualslib.com

HONDA CASSETTE/MP3 PLAYER INSTALLATION INSTRUCTIONS MANUAL Pdf Download

View and Download Honda CASSETTE/MP3 PLAYER installation instructions manual online. CASSETTE/MP3 PLAYER (EX) 2006 Pilot. CASSETTE/MP3 PLAYER car stereo system pdf manual download. Also for: 08a03-5e1-001, 08b06-s9v-100a, 08b23-s9v-100c, 08a06-4e1-201.
www.manualslib.com www.manualslib.com
Reply
Save
Like
  • Helpful
Reactions: 2
plplplpl
royalbiggster said:
Click to expand...
Where's that one from? It has everything: AM/FM, cassette, DVD (for RES, no doubt) and a CD player (1 or 6?) . (y)

WiiMaster said:
@plplplpl IIRC you have the GTA Car Kit installed as well? I'll be curious to see how it meshes with that.
Click to expand...
That's kind of the wild card I'm wondering about. I checked in the box my GTA Car Kit came in, and I still have the included Y-harness I didn't end up needing. It'll be interesting to see if it comes in handy now. :)

Honda Y Cable for Honda/Acura stereos with Navigation or XM radio – GTA Car Kits

Circuit component Font Electronic device Cable Electronics accessory
See less See more
Reply
Save
Like
  • Like
Reactions: 2
plplplpl
WiiMaster said:
Also, I found this interesting manual that appears to be from Honda. It shows the cassette player installation instructions for the 06 Pilot EX:
www.manualslib.com

HONDA CASSETTE/MP3 PLAYER INSTALLATION INSTRUCTIONS MANUAL Pdf Download

View and Download Honda CASSETTE/MP3 PLAYER installation instructions manual online. CASSETTE/MP3 PLAYER (EX) 2006 Pilot. CASSETTE/MP3 PLAYER car stereo system pdf manual download. Also for: 08a03-5e1-001, 08b06-s9v-100a, 08b23-s9v-100c, 08a06-4e1-201.
www.manualslib.com www.manualslib.com
Click to expand...
And thanks for that. Another good place to get installation manuals, I've found, is Bernardi. They often post unwatermarked PDFs if you scroll down a bit on some of their parts pages.

Honda Cassette/MP3 Attachment Kit (Pilot)

Attachments

Reply
Save
Like
  • Like
Reactions: 2
royalbiggster
plplplpl said:
Where's that one from? It has everything: AM/FM, cassette, DVD (for RES, no doubt) and a CD player (1 or 6?) . (y)
Click to expand...
It is for 2003-05 Pilot RES.
Reply
Save
Like
  • Like
Reactions: 2
plplplpl
The head unit those years had a 1-CD player, and a 6-CD player could be an add-on unit under the seat, right? Even for an RES trim?
Reply
Save
Like
  • Like
Reactions: 1
royalbiggster
I know my non-RES 05 stereo got 6 disc cd changer. I would imagine the same for the other models. Seems like they used the same stereo for RES and Non-RES with different guts. My cd-changer is in the dash under the climate control.
Reply
Save
Like
plplplpl
royalbiggster said:
My cd-changer is in the dash under the climate control.
Click to expand...
Ah, so a separate 6-CD unit not integrated in the head unit like my 2006 RES head unit has? My DVD player is where your CD changer is. Hmm, this prolongs my suspense.
Reply
Save
Like
  • Haha
Reactions: 1
royalbiggster
I wonder how hard it would be to integrate the system with the dvd being where the cd changer is, and needing to re-wire it to the stereo if you go that route. Would make a pretty good write-up.
Reply
Save
Like
  • Like
Reactions: 1
plplplpl
My 6-CD changer is integrated into the head unit.

Reply
Save
Like
  • Haha
Reactions: 1
royalbiggster
6 disc + 1 in the head unit makes 7 disc plus tape. If that helps any.
Reply
Save
Like
  • Like
Reactions: 1
plplplpl
2
Finally got my eBay cassette player. I will attempt the installation when the weather warms up, up here.


Now I'm concerned my GTA Car Kit Y-cable won't be long enough. The cassette player came with the harness but its wires cut off.

Grass Gas Audio equipment Machine Metal




The Y-harness I have left over from my GTA-Car Kit is only yay long...

Circuit component Font Electronic device Cable Electronics accessory



Anyway, it looks like I'll need a male-to-male harness with this, right?

Or do I just need a male-to-female harness straight from the head unit, since I didn't need this Y-harness in my original GTA Car Kit installation?
See less See more
Reply
Save
Like
  • Like
Reactions: 1
